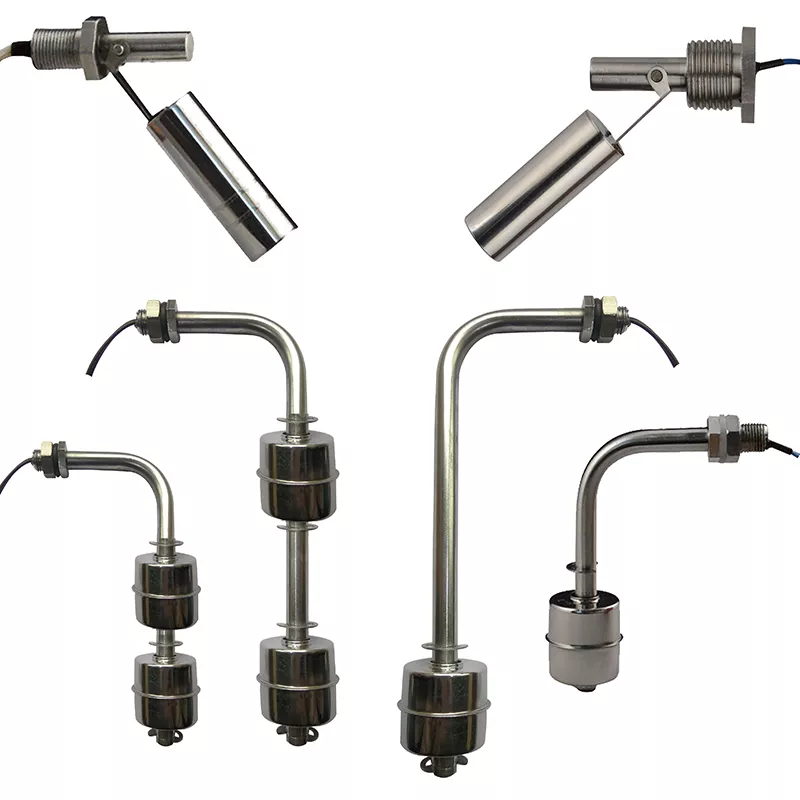

Liquid Level Float Switch
Brand: IriDu
MOQ: 100 Pieces
Delivery time: 7 Day
Mounting Type: Side Mount Top Mount
Description: Detects whether the liquid level is high or low
Series: Float Switch/Liquid Level Sensor
Features: Detects liquid level
Principle: Reed contact
Output: Switch signal ON/OFF
Material: Stainless steel SUS304/SUS316L
Length: 45 ~ 500mm
Mounting Direction: Vertical/Horizontal
Number of Liquid Level/Float: 1/2/3/4
Mounting Thread: M10 / M12
Switching Power: 70W
Product Details
Product Name: Liquid Level Float Switch
Mounting Type: Side Mount Top Mount
Description: Detects whether the liquid level is high or low
Series: Float Switch/Liquid Level Sensor
Features: Detects liquid level
Principle: Reed contact
Output: Switch signal ON/OFF
Material: Stainless steel SUS304/SUS316L
Length: 45 ~ 500mm
Mounting Direction: Vertical/Horizontal
Number of Liquid Level/Float: 1/2/3/4
Mounting Thread: M10 / M12
Switching Power: 70W
Switching Vdc/Vac: (200/250)
Switching Current: 0.5 / 1.0A
Temperature Range: -40 ~ + 125 °C
Other Options: Wire Length, Terminals and Customized as Drawing
Mounting Type: Side Mount Top Mount
Description: Detects whether the liquid level is high or low
Series: Float Switch/Liquid Level Sensor
Features: Detects liquid level
Principle: Reed contact
Output: Switch signal ON/OFF
Material: Stainless steel SUS304/SUS316L
Length: 45 ~ 500mm
Mounting Direction: Vertical/Horizontal
Number of Liquid Level/Float: 1/2/3/4
Mounting Thread: M10 / M12
Switching Power: 70W
Switching Vdc/Vac: (200/250)
Switching Current: 0.5 / 1.0A
Temperature Range: -40 ~ + 125 °C
Other Options: Wire Length, Terminals and Customized as Drawing
